Rehabilitation UV Cured CIPP Relining For Urban Pipes Repair Cipp Pipe Repair

Rehabilitation UV Cured CIPP Relining For Urban Pipes Repair Cipp Pipe Repair

MOQ: 60m
Price: Variable
Standard Packaging: Normal
Delivery Period: 15 working days
Payment Method: T/T
Supply Capacity: 220 km per year
Detail Information
Place of Origin
Jiangsu, China
Brand Name
DAO
Material:
UV Light
Diameter:
DN500
Thickness:
6mm
Length:
360m
Weight:
Variable
Life:
50 Years
Highlight:

Rehabilitations UV Cured CIPP DAO

,

UV Cured CIPP Relinings DAO

,

relinings cipp DAO

Product Description

UV cure product for urban pipes service and repair by no excavation process



UV CIPP curing trenchless repair:

UV curing uses UV light as the curing medium. The resin contains a photoinitiator. When irradiated by UV light of a specific wavelength, the resin will produce a curing reaction to form a new high-strength lined pipe. The installation method is mainly pull-in type, which is applicable to drainage pipes of various shapes with a pipe diameter of 150mm~1600mm. During construction, the windlass is used to pull the glass fiber inner liner filled with resin into the existing pipeline, and the inner liner is "blown" by a large flow fan, and then clings to the inner wall of the existing pipeline. After solidification, the pipeline can not rely on the original pipeline, and can independently bear internal and external pressure. The repaired new pipe will not affect the water flow section, and the normal service life is more than 50 years.



UV curing repair process:

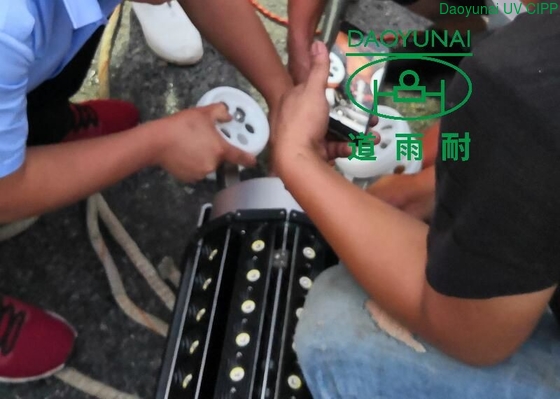

(fixed binding head) (sent to lamp rack) (UV curing) (repaired pipe)



UV curing repair features and advantages:

◆ little impact on traffic, etc. Trenchless lining repair without excavation of work pit;

◆ good construction controllability and short construction period. The whole curing process is monitored by CCTV, and the pulling in and curing can be completed in only 3 to 4 hours;

◆ energy saving and high security. UV curing is adopted, with low energy demand. No water or steam curing is used at the construction site, and no toxic gas or other harmful substances are produced;

◆ the inner liner has a good sealing effect, strong corrosion-resistance, and long service life;

◆ high mechanical strength can be achieved under small thickness to reduce the current carrying loss of pipe diameter;

◆ high bending elastic modulus, bending, and tensile strength;

◆ many domestic and international authoritative quality certifications.



 How  CIPP
 Application  Storm
 Length  Any length is possible
