Ultraviolet UV CIPP Equipment Underground Sewer Pipeline Repair Drain

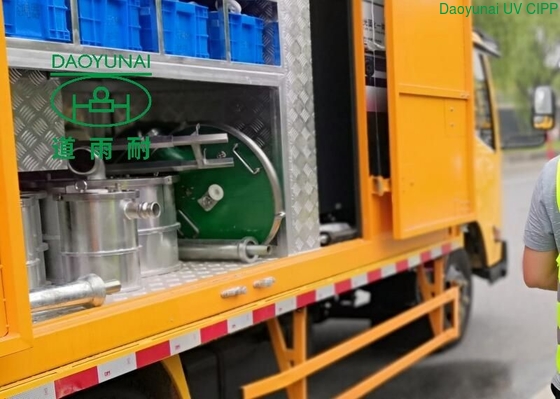

UV cure CIPP equipment specially designed to repair underground sewer pipeline

UV Cure Equipment features:

1. 15-inch touch control screen: the real-time display of curing speed and distance, monitoring of temperature and pressure changes, construction

In the process, it is necessary to touch and adjust the curing speed in real-time according to the parameters.

2. Video monitoring system: 14-inch high-definition display screen, which displays the surface curing effect through the lamp holder camera.

3. Data function: it can record road well number and pipe diameter information and has a screen capture function, and can store 1920*1080p

High definition image, equipped with USB convenient interface to facilitate the export of relevant engineering data.

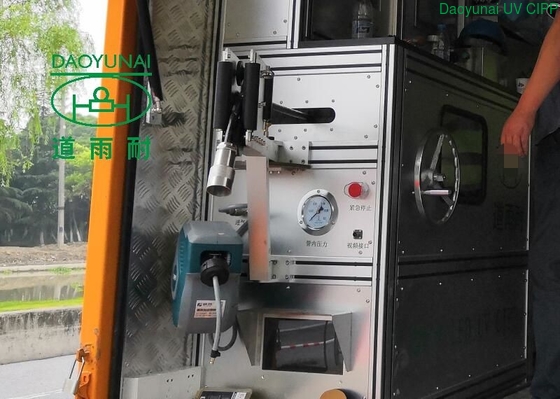

4. Configure the electric lock key and the emergency stop button at the rear of the vehicle and the console.

5. The automatic take-up system adopts a high-precision encoder and tachometer to accurately control the speed to ensure safe curing,

It is also equipped with a manual take-up reel. The whole system includes a reel, private server motor, and private server controller filter link

Cables and control cables.

6. Lamp holder power supply system, constant current regulation, overvoltage, and overcurrent protection to ensure the stable operation of curing lamp.

7. Cable, 18mm in diameter, lined with Kevlar woven net and high-strength Pu sheath, wear-resistant, tensile and anti

Bending, corrosion resistance.

8. Wiring length: 180m (optional)

9. Pressure monitoring system: including rear and touch screen pressure display.

10. The onboard power supply: 380v/50hz three-phase power supply. (standard 30KW quiet generator)
