Committed to underground pipeline CIPP and CCTV
|
Product Details:
Payment & Shipping Terms:
|
| Function: | For Trenchless Repair Underground Pipe Sewer | Section: | UV Cure, Blower, Cable Reel, Video, AC, Generator And Chassis |
|---|---|---|---|
| Cable Reel: | 200m | Lamb: | LED |
| Small Light: | For DN200-600 | Big Light: | For DN600-1600 |
| Speed: | 0.1-2m/min | Material: | Stainless Steel |
| Product Name: | CIPP LED Lamp UV Cure System | ||
| High Light: | Bluelight LED Lamp UV CIPP Equipments DAO,UV Lining Drain Repair,UV CIPP Equipment Drain Linings DAO |
||
D919 ultraviolet (UV) light cure integrated system is for CIPP underground pipeline trenchless repair, which is independently developed and designed by Daoyunai.
The industrial pipeline trenchless repair equipment is composed of the mobile control system, transmission cable, UV light holder, HD camera, and auxiliary tools.
Integrated design, High integration!!!
High efficiency and energy-saving, few pollutions, only need a generator power supply and use the quiet generator (customer selection available).
The UV cable length is standard 200m, and the curing speed is 0.1 ~ 2.8m/min.
Digital transmission, real-time monitoring of repair status, automatic voltage stabilization.
Embedded industrial computer and keyboard, 15-inch touch screen, which can store high-definition images (1920 * 1080).
LED curing is adopted with a short curing time and high speed.
After the lining is cured, it is tensile, compressive, corrosion-resistant, and has independent structural strength.
According to the CIPP repair and curing process, Daoyunia Energy Saving Technology Limited independently developed and manufactured the D919 UV light curing integrated trenchless repair equipment, which is more suitable for the repair of complex drainage pipe networks.
D919 ultraviolet (UV) light curing integrated equipment adopts imported LED cold light source, which makes the construction operation simple and reliable, which can avoid film burning and incomplete curing.

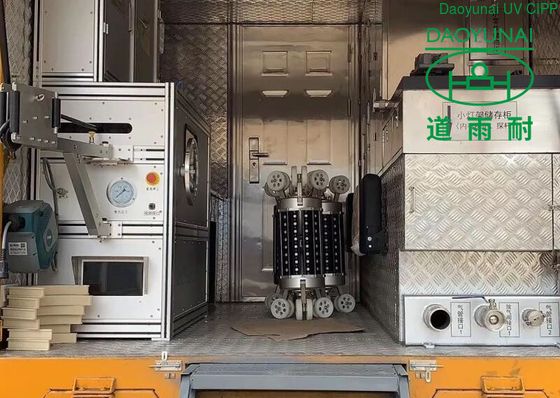

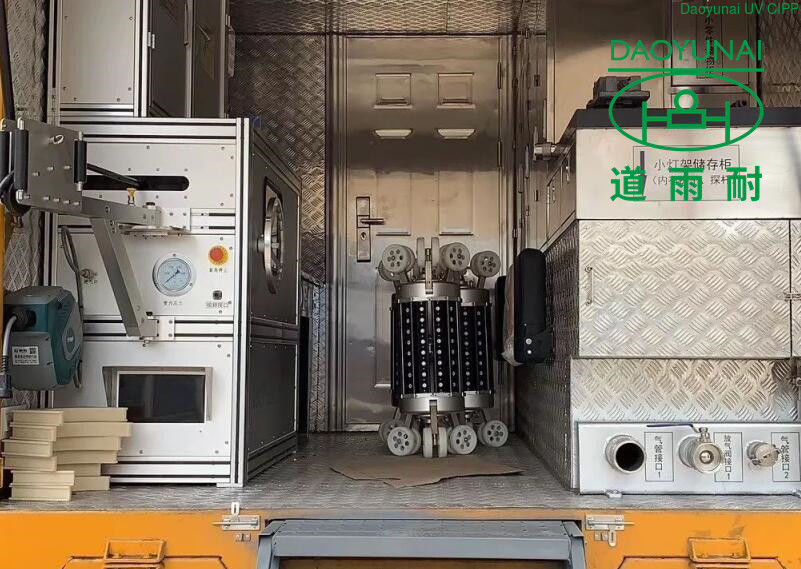

The installation of D919 ultraviolet (UV) light curing integrated equipment is flexible. It can be installed on any chassis, or in containers, made into mobile and portable. The layout design in the vehicle is reasonable, which is convenient for on-site construction, and the supporting auxiliary supplies are complete, which can save the carrying of tool vehicles.
DAO UV cure system D919 is good for trenchless repair underground sewer pipe ranging diameter from DN200-DN1600mm.
| Small light train | |
| Applicable pipe diameter | DN200-600 |
| Light source | UV-LED cold light source, 400W * 6 two lamp strings |
| Temperature sensor | Equipped with two temperature sensors (optical convenience 20:1, measurement accuracy ± 1%) |
| Leg | The lamp legs suitable for DN250, dn400, DN500 and DN600 pipes can be interchanged as needed. |
| Big light core | |
| Applicable pipe diameter | DN600-1600 |
| Light source | UV-LED cold light source, 960W * 3 |
| Temperature sensor | Equipped with two temperature sensors (optical convenience 20:1, measurement accuracy ± 1%) |
| Leg | The lamp leg is controlled to rise and fall freely to the appropriate pipe diameter on the touch screen. It stops automatically after lifting in place. It has the functions of upper and lower limits and limit protection. |
| Folding design | It is convenient for the construction personnel to quickly place the lamp holder. |
